Bushing Cross Reference
Note: Information provided is meant for reference purposes only. ALWAYS confirm electrical and dimensional characteristics to ensure a bushing meets the application requirements.
PCORE Catalog Number: 89401-70
89401-70
PRC
Vertical
250
46
|
Min Oil Level
-W--T- 16.5 |
Min Creepage
48 |
Min Strike
-S- 21.5 |

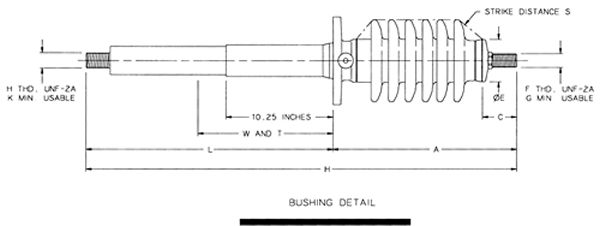

Overall Length
-H- 55.62 |
Above Flange Length
-A- 28.62 |
Below Flange Length
-L- 27 |
D Max
-D- 4 |

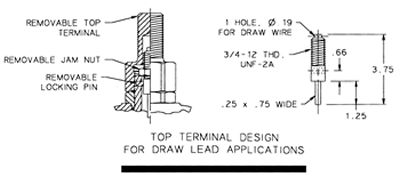

Draw Lead Above Flange
24.75 |
|
Live Part Height
-C- 5.78 |
Live Part Diameter
-E- 4.5 |
Top Terminal THD Size
-F- 1 1/8-12 |
Top Terminal THD Lenght
-G- 2.50 |
Top Terminal Plating
Silver |

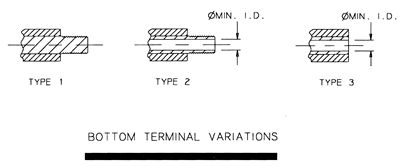

Bottom Terminal Type
3 |
Bottom Terminal Diameter
-H- NA |
Bottom Terminal Min Thread
-K- NA |
|
Stud Id
1 |

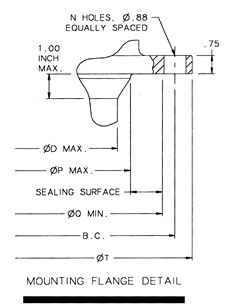

Sealing Surface
-P- 4.5 |
Sealing Surface
-Q- 7.38 |
Flange No Holes
-N- 4 |
Flange BC
8.25 |
Flange OD
-T- 10.62 |
Net Weight
(lbs.) 105 |
